Typical applications
- Network and security appliances
- AV processors and controllers
- Compact professional equipment
- Retrofit and replacement mounting
Mounting & Adapter Parts

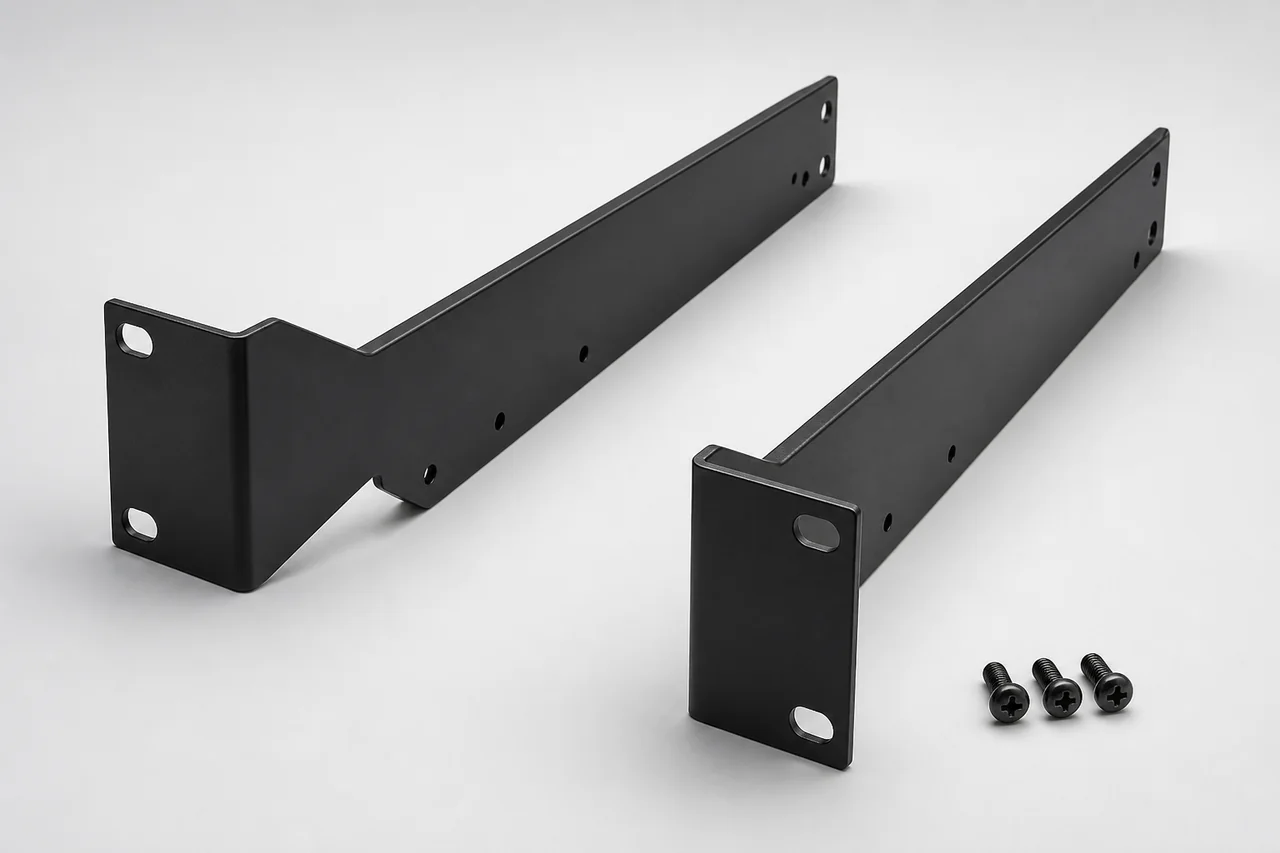

Custom Rack Ears
Coordinate equipment-specific rack ears from a drawing, sample, photo or measured interface.
Custom rack ears adapt equipment to a required rack position when a standard bracket does not match the chassis or installation.
Applications and scope
Designed around the equipment interface
The following options describe review areas, not a fixed stocked specification.
What can be customized
- Hole pattern and side interface
- Rack position, height and offset
- Flange geometry and orientation
- Finish, markings and included hardware
Technical options
Materials, processes and project inputs
Final selection depends on geometry, environment, quantity, appearance and the matched manufacturing process.
Material options
- Mild steel
- Stainless steel
- Aluminum
Process options
- Laser cutting or punching
- Bending and machining
- Welding when required
- Powder coating, anodizing or other reviewed finishes
What to send
- Equipment model and dimensions
- Target rack arrangement
- Attachment points and hole spacing
- Load, quantity, finish and delivery destination
Accepted for initial review: PDF, DWG, DXF, STEP, STP, JPG, JPEG, PNG, WEBP, ZIP.
Project-specific review
Commercial terms follow technical review
MOQ
Confirmed after reviewing dimensions, material, process and quantity.
Lead time
Confirmed after technical and production review.
Pricing
Quoted based on drawing, material, finish, quantity and delivery destination.
How it works
A controlled path to an approved part or kit
- 01
Submit Requirement
Share the application, quantity, destination and any photos, drawings, samples or model details.
- 02
Technical Review
We clarify interfaces, dimensions, materials, finishes, use conditions and acceptance criteria.
- 03
Supplier & Process Matching
We coordinate with manufacturing partners selected for the reviewed process and project fit.
- 04
Prototype
Where appropriate, a prototype is coordinated for dimensional, functional and finish review.
- 05
Approval
Production begins only after the agreed sample, drawing or specification is approved.
- 06
Production
The approved scope, quantity, packing and required checkpoints guide production coordination.
- 07
QC & Kitting
Agreed inspection points and kit contents are checked before release for delivery.
- 08
Delivery
Packing, shipping method, destination and documentation are confirmed for the project.
Related solutions
Combine parts when the project requires it
FAQ
Questions about custom rack ears
Can you review a rack ear project without a CAD drawing?
Yes. Photos, a physical sample or measured equipment details can start the review. We may request additional dimensions before feasibility or pricing is confirmed.
How is rack fit confirmed?
The equipment interface, target rack position, hole spacing, load and any required hardware must be reviewed against an approved drawing or sample.
